Product Dimensions 40.5"h x 46.38"w x 14.06"d

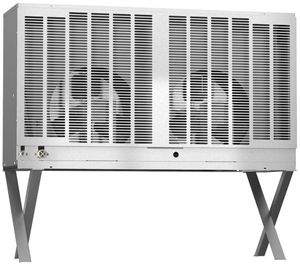

The URC-26JZ, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′, 55′), tubing kits sold separately.Read More
The URC-26JZ Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (9 lbs. 11.2 oz. / 4400 g). Compatible icemakers, sold separately: KM-2600SRJZ3. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Remote condenser for KM-2600SRJZ3
Quiet operation
Weather resistant cabinet for longer life
Must be hardwired at the site (4 wire, including ground)
Allow 24″ clearance for best performance
Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
R-404a refrigerant (9 lbs. 11.2 oz. / 4400 g)
Compatible icemakers, sold separately: KM-2600SRJZ3
Icemaker Connection: Single Phase, 115v/60/1, Must be hardwired at the site (4 wire, including ground)
Brazing & Refrigerant Required Line Kits:, 20′ Length: R404-20610, 35′ Length: R404-35610, 55” Length: R404-55610
Ambient Temp Range: -20 – 122°F, Voltage Range: 104 – 127V, Refrigerant: R-404a, Refrigerant Charge: R-404a, (9 lbs. 11.2 oz. / 4400 g)
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Watersense Certified | No |
| Wifi Capable | No |
| Smart Compatible | No |
| Outdoor Approved | No |
| Width (in.) | 46.38 |
| Depth (in.) | 14.06 |
| Height (in.) | 40.5 |
| Manufacturer Warranty | 3 Year Parts & Labor on Entire Unit / 5 Year Air-Cooled Condenser Coil |
| ADA Compliant | No |
| Frequency | 60 |
| Voltage | 104–127 |
